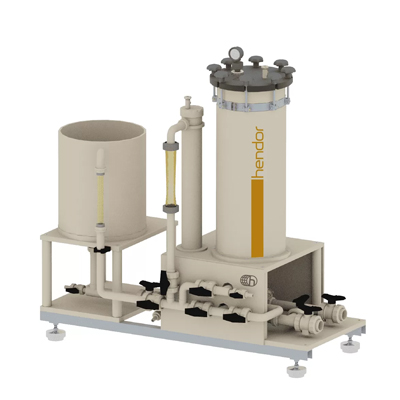

HE-SNF-600 | Satin Nickel Filteration System
Technical Specifications
- Skid: ANSI 316 frame on adjustable feet
- Material: PP with EPDM elastomers
- Temperature: 80°C max.
- Pump: Magnetic Drive MXH150-PP, 1450 rpm, 0,55 kW motor
- Filter, Main: 95 off Horizontal Disc ø 295 mm, volume 28 liter, pressure gauge 0-1,0 bar
- Slurry tank: volume 80 liter, inspection glass to check clarity
